Описание
Mini Digital Amplifier with USB & Bluetooth
● Built-in 2x30W stereo Class D amplifier
● Support wireless Bluetooth 3.0 and USB/SD input
● 1 AUX and 1MIC input , 1 AUX output for power extension
● Support REC and digital volume control
● With remote controller for convenient use
● With power adapter support 12-24V DC power
● Aluminum-alloy casing, small volume & portable, firm & durable
Introduction
MINI60 is a digital mixer amplifier, also known as public address mixer, and a small acoustic amplification system featured by simplicity and high cost performance. This class d mixer amplifier can apply to the small-sized broadcast system, the background music in the small-sized supermarket, and public address in the classroom. The digital mixer system consists of the latest high-performance ARM core master control and high-efficiency energy-saving digital power amplifier circuit. This product’s name for short can be calledbluetooth mixer amplifierordigital mixer amplifier.
Specification
| Item | Indicator | Remark |
| AUX input sensitivity (Input/Sensitivity) | -6dBV | OUT 30W×2
DC 20V |
| MIC input sensitivity (Input/Sensitivity) | -45dBV | |
| Power output (Power Output) | 2×30W | |
| Static power consumption (Power) | 0.24W | |
| Maximum power consumption (Max Power) | 90W | |
| Degree of distortion (Harmonic Distortion) | 1% | 4Ω/10W×2 |
| Signal to noise ratio (S/N Ratio) | MIC: 73dB AUX: 55dB | |
| Range of power supply (Power Supply) | DC 12V~24V | |
| Frequency response (Frequency Response) | MIC: 100Hz~16kHZ
AUX: 20Hz~22kHz |
±3dB |
| Unit size (L×W×H mm) | 180×145×60 | |
| Net Weight | 0.8Kg | Without power adapter |
| Packing size (L×W×H mm) | 287x223x108 | |
| Gross Weight | 1.0Kg | |

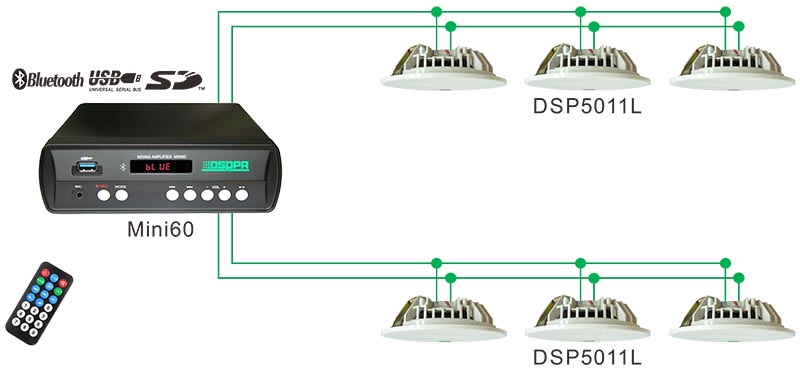

Connection
