Описание
● Individual partition source selection
● Individual partition volume control
● Network port balanced audio output
● Digital screen display for audio sorce and volume
● DC 24V power supply
Introduction
MAG808S is 8 zones mini remote control panel, it has a digital screen and suppots DC24V. This mini remote control panel has a network port balanced output audio and partitiomn source.
Specification
| Model | MAG808S |
| Supply Voltage | DC24V |
| Control | Source selected、Volume control |
| Packing Size | 106mm×106mm×67mm (1PS) |
| Machine Size | 86×86×42mm |
| Net weight | 0.16Kg |
| Gross weight | 0.30Kg(1PS) |

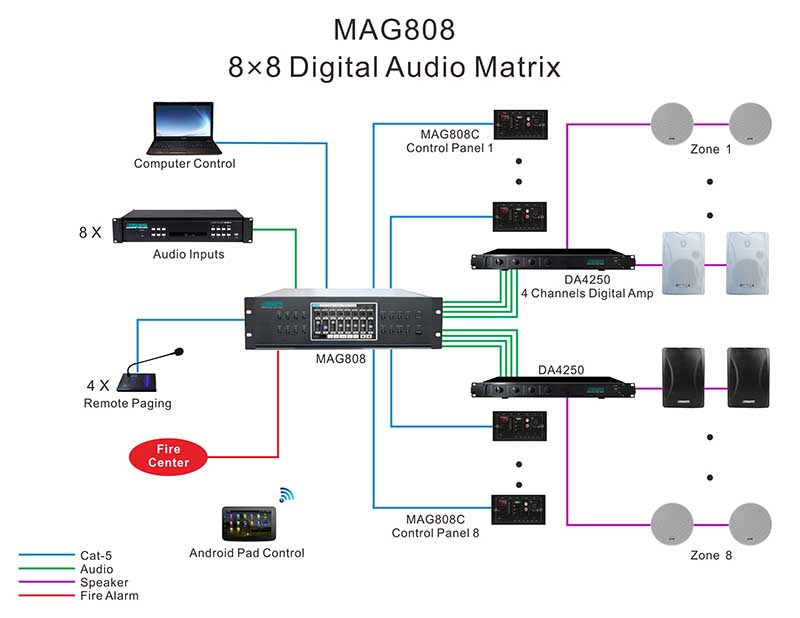

Connection
