Описание
● Network port balanced output audio
● Audio signal level indicator
● Partition source control and volume control
● With digital screen & 24VDC power supply
● MP3 play and independent volume control knob
● 1 line input and independent volume control knob
● 1 MIC input and independent volume control knob
Introduction
MAG808C is 8 zones remote control panel, it has a digital screen and suppots DC24V. This panel has 1 MIC and 1 line input with independent volume control knob respectively.
Specification
| Model | MAG808C |
| Power | DC 24V |
| MICinput sensitivity | 10±2mV |
| LINEinput sensitivity | 300±50mV |
| USBinput sensitivity | -10dB |
| MIC frequency response | 100Hz～15kHz（±3dB） |
| AUX frequency response | 20Hz～20kHz（±3dB） |
| Noise | <0.5mV |
| Distortion | <0.5% 1KHz |
| Rated power | DC 24V |
| Net port output level(balance） | 2000±100mV |
| Machine size(L×W×H) | 145mm×80mm×47mm |
| Packing size(L×W×H) | 310mm×180mm×95mm (1PS) |
| Net weight | 0.4Kg |
| Gross weight | 0.7Kg (1PS) |

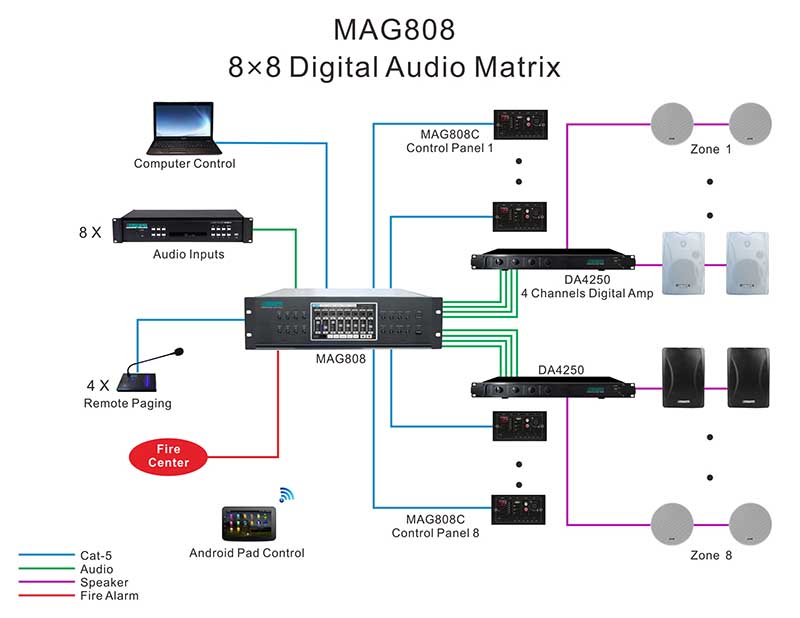

Connection
