● 7” touch screen, built-in control software, integrated with audio matrix, zones, timing, voice alarm, etc.
● 8 channel balanced audio inputs, 8 channel balanced audio outputs, each channel with individual EQ control
● Each zone support remote panel control, including audio selection, audio input and volume control
● Support 4 remote paging microphone, 2 local Mic with phantom power supply
● Support MP3 playing (built-in audio or external USB), FM. Built-in 4G memory sticker, can extend to 32G

Introduction

Built-in one-touch alarm, chime input, Fire Alarm input, 8 dry contact inputs and one dry contact output

Built-in TEL input module, with password management, support TEL paging to all zones

Support monitoring function, can monitor each individual zone separately

Support remote computer control and Android pad control within the same network

Support AC Power input and DC 24V input

Description:

The MAG808 digital audio matrix & paging controller is highly integrated, which is catering for multi-zone paging and multi-sources selection.

It supports 8 balanced audio inputs and 8 balanced audio outputs, remote paging, remote panel control, remote computer & Android pad control. It supplies with multiple audio inputs. Besides 8 AUX inputs, it also supports MP3 playing (built-in or external USB) and built-in FM. To better adapt to the emergency system, it supports TEL paging to all zones, one-touch alarm, 8 dry contact inputs and 1 dry contact output.

It’s a complete solution for multi-zone, multi-functional venues like entertainment place, large-scale hotel, sports centers, shopping mall, airport etc.

Specification

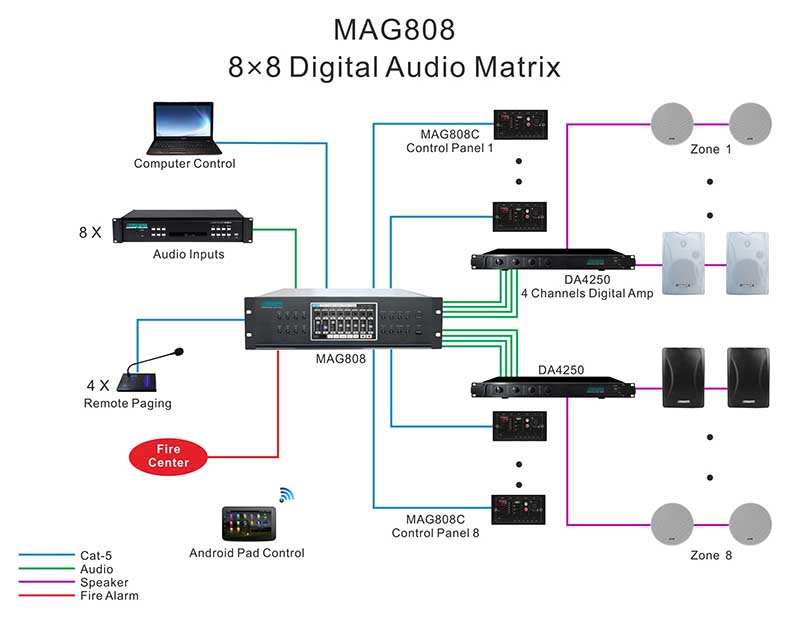

Connection

MAG808 8×8 Digital Audio Matrix PA System
